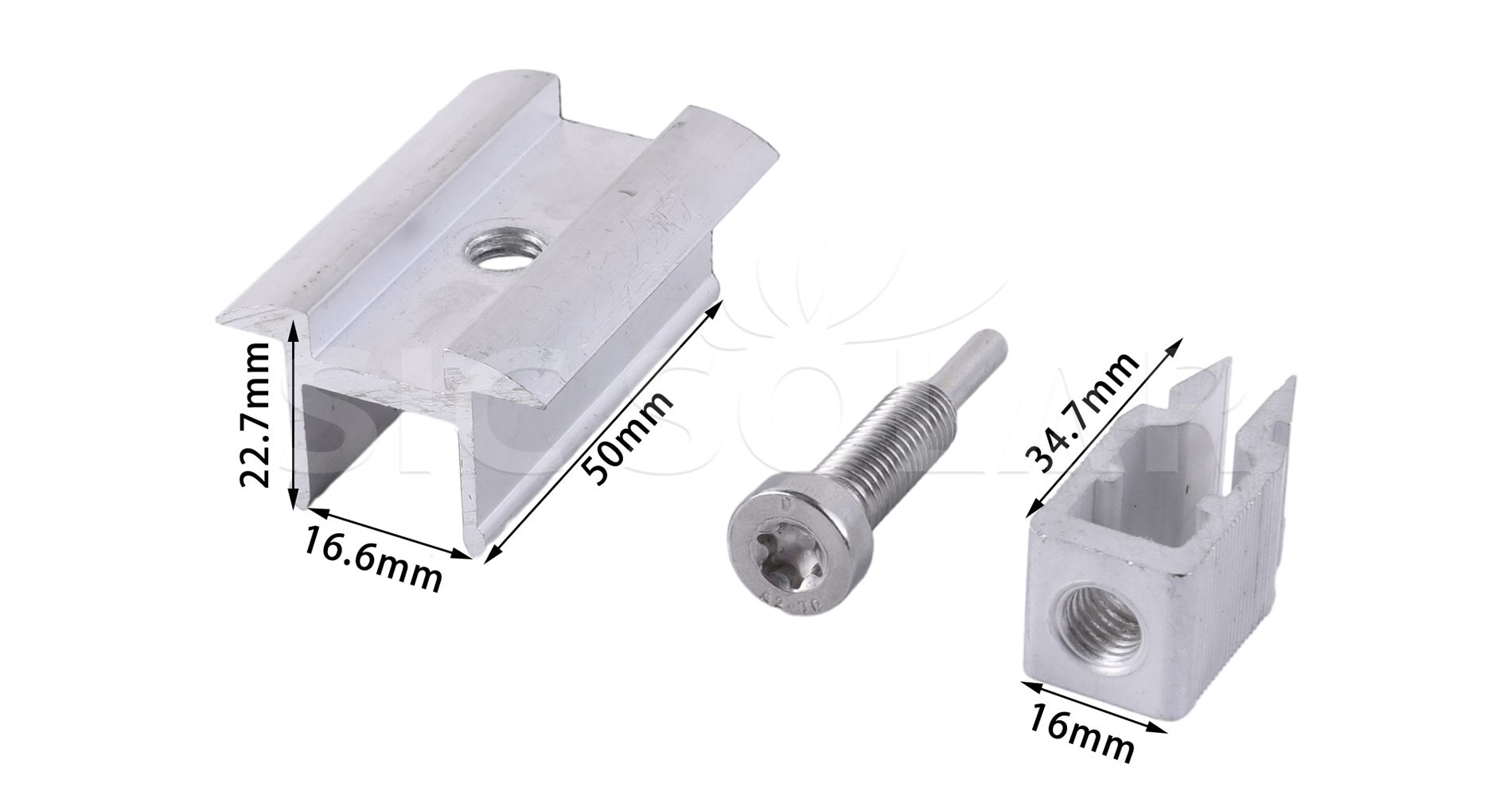

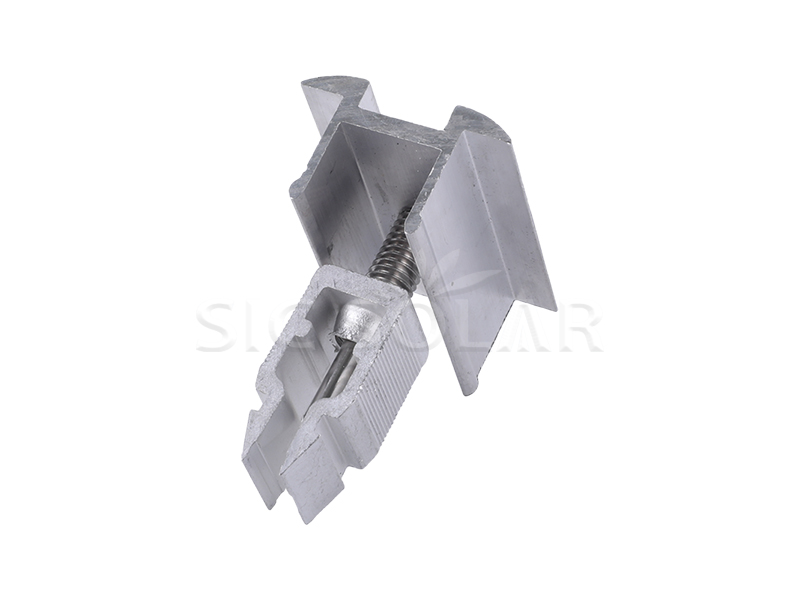

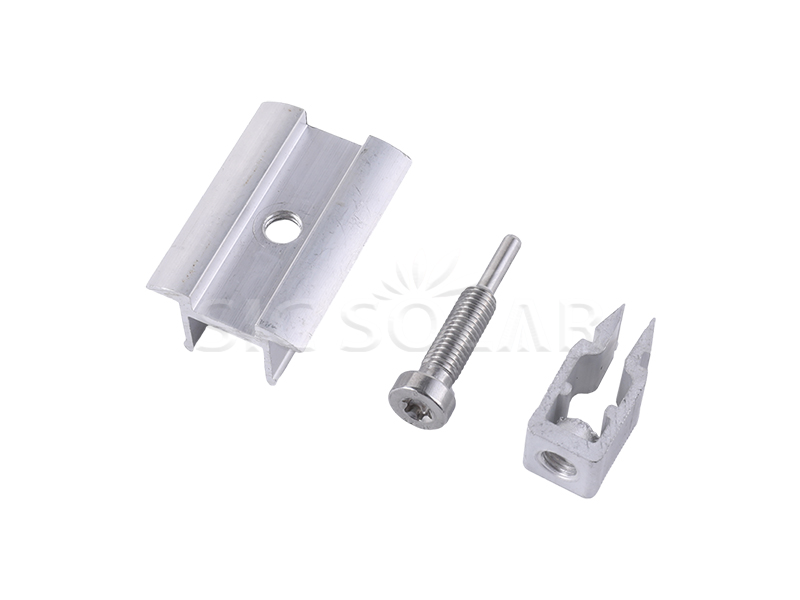

Pengapit Tengah Pantas Panel Suria Aluminium

Klik di sini untuk mengetahui lebih lanjut tentang pengapit tengah

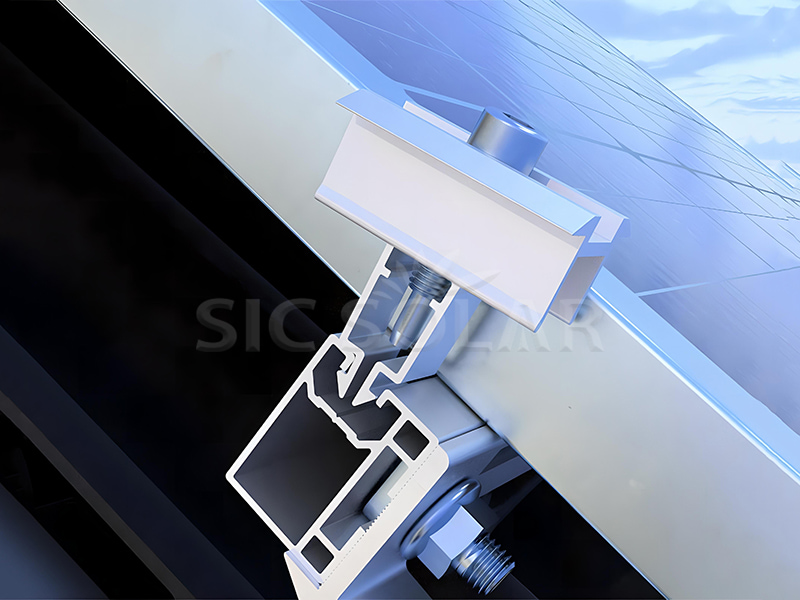

1️⃣ Place the first panel on the mounting rail.

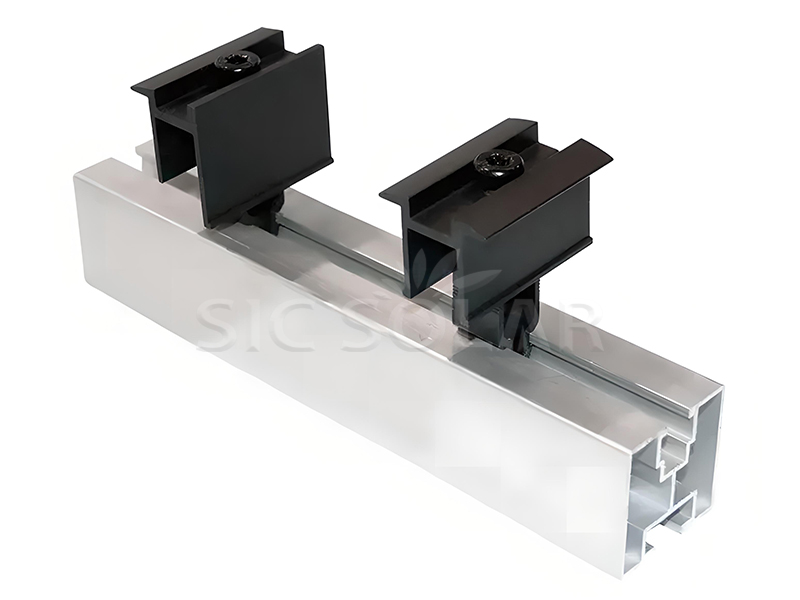

2️⃣ Put the quick-release center clamp between the first and second panels.

3️⃣ Slide the bolts through the clamp into the rail grooves.

4️⃣ Tighten the clamp evenly with a torque wrench or screwdriver.

5️⃣ Repeat for all panels and add end clamps at both ends.

☆ Installation is fast—you just press the clamps into the rail.

☆ Made from AL6005-T5 aluminum, these clamps offer durability with a 10-year warranty and up to 25 years of service.

☆ They resist corrosion well.

Related certificate

☆ Aluminum quality certificate – AL6005-T5 composition list.

☆ SGS certificate for screw material – SUS304.

Q1. Can the bolts also be made black ?

Yes.

Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.

Q3. Can the clamps be customized ?

Yes.
