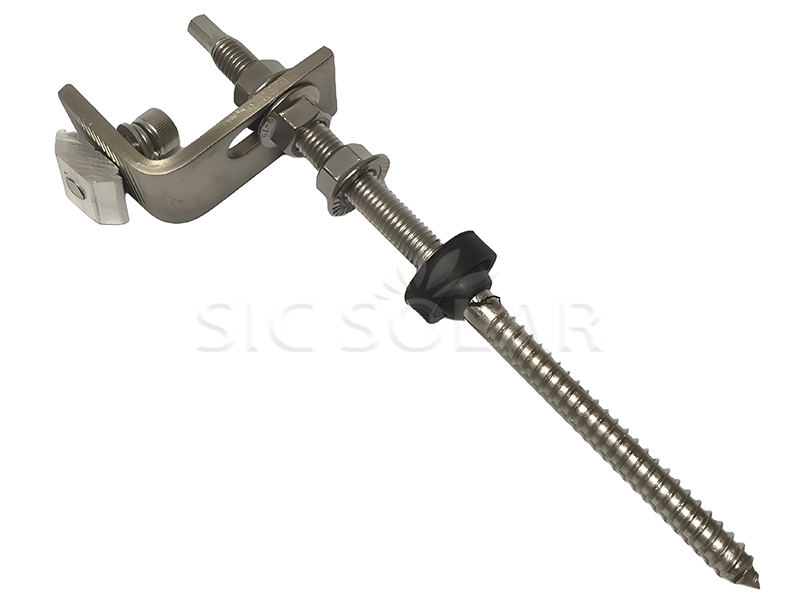

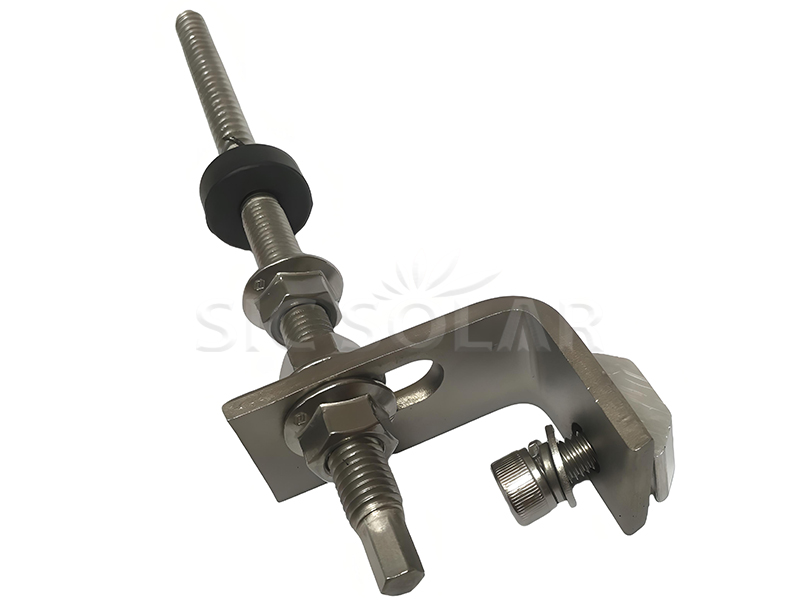

Bolt Penyangkut Solar untuk rasuk kayu Dengan kaki L keluli tahan karat

Bolt Penyangkut Solar Untuk Rasuk Kayu Dengan Kaki L Keluli Tahan Karat adalah bahagian yang sukar untuk memasang panel solar. Ia memastikan panel melekat pada rasuk kayu untuk masa yang lama.

Jenama:

SIC SOLAR

Perkara NO.:

SIC-HB-SL

Roof

Butiran Teknikal Panduan Pemasangan Pakej Advantage FAQ

Tapak Pemasangan	Roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5 & Stainless Steel 304
Color	Natural or Customized
Anticorrosive	Anodized aluminum & stainless steel
Warranty	10 years and 25 years service time

1️⃣ Cari tempat: Cari dan tandakan kayu di bawah bumbung, pastikan ia dijarakkan betul-betul untuk beban.

2️⃣ Drill holes: Drill holes in the wood that fit the bolt threads.

3️⃣ Screw in bolts: Use a wrench to screw the bolts into the holes. Make sure they are tight and straight.

4️⃣ Attach L-feet: Put the L-shaped legs on the bolts, adjust the height, and tighten them with washers and nuts.

5️⃣ Put on rails: Attach the solar rails to the L-feet, make sure they line up, and tighten everything to the right amount.

Solar bracket package

☆ Pegangan kuat - Bolt penyangkut melekat terus pada keluli.

☆ Lasts long – good stainless steel 304 means it will last for 10 years.

☆ Waterproof – The EPDM rubber keeps water out.

☆ Ready to go – The parts are put together, which saves you money on installation.

Related certificate

☆ Strength test – The mounts are tested to handle wind and snow.

☆ Aluminum certificate – AL6005-T5 ingredients list .

S1: Bolehkah saya mendapatkan pesanan sampel?

Yes, there is no MOQ limited, one sample order is ok.

Q2: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.
