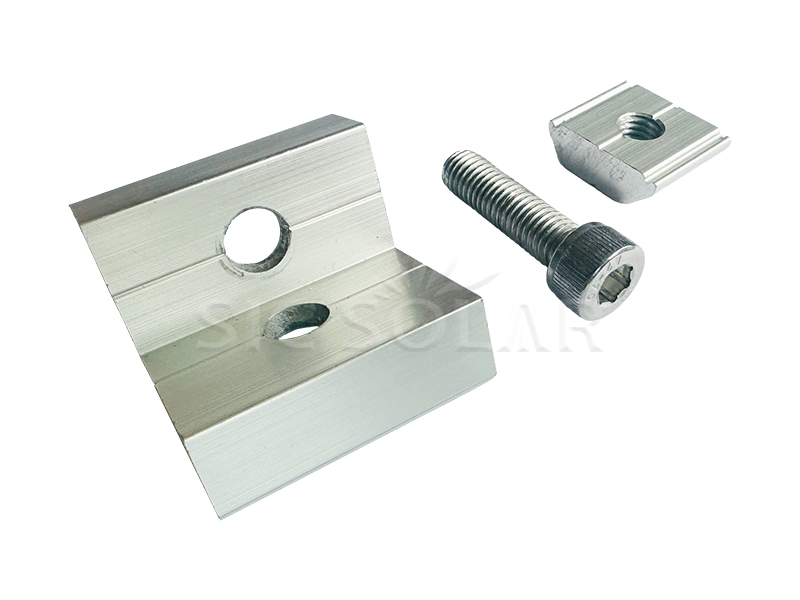

Pengapit Hujung Dwi-guna Solar 30/35mm

Pengapit Hujung Dwi-Tujuan Solar 30/35mm is a handy thing for attaching solar panels to mounting rails, especially the ones on the edges. It works with both 30mm and 35mm thick panels, so it's good for different types of solar setups.

Jenama:

SIC SOLAR

Perkara NO.:

SIC-EC-C3035

Roof or Ground

Komponen Butiran Teknikal Panduan Pemasangan Pakej Advantage FAQ

Klik di sini untuk mengetahui lebih lanjut tentang pengapit

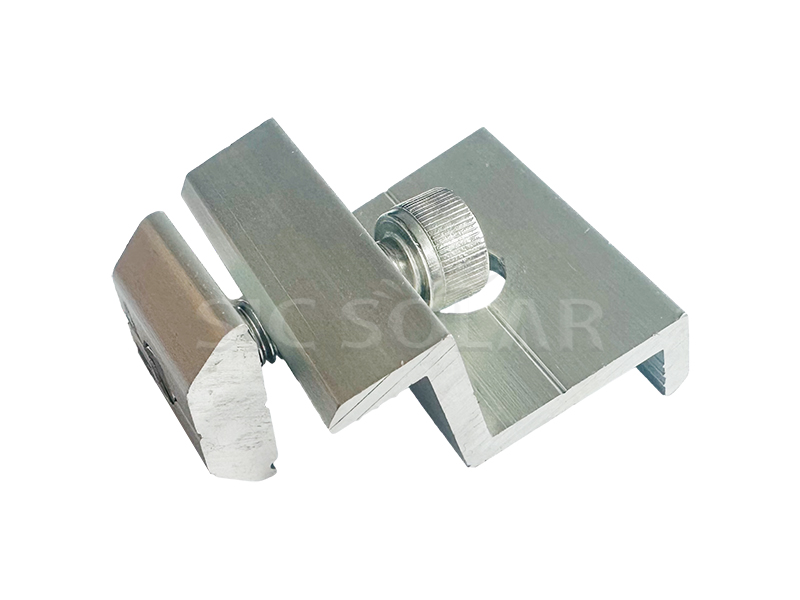

Solar Panel End Clamps

Tapak Pemasangan	Roof or Ground
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Aluminum 6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

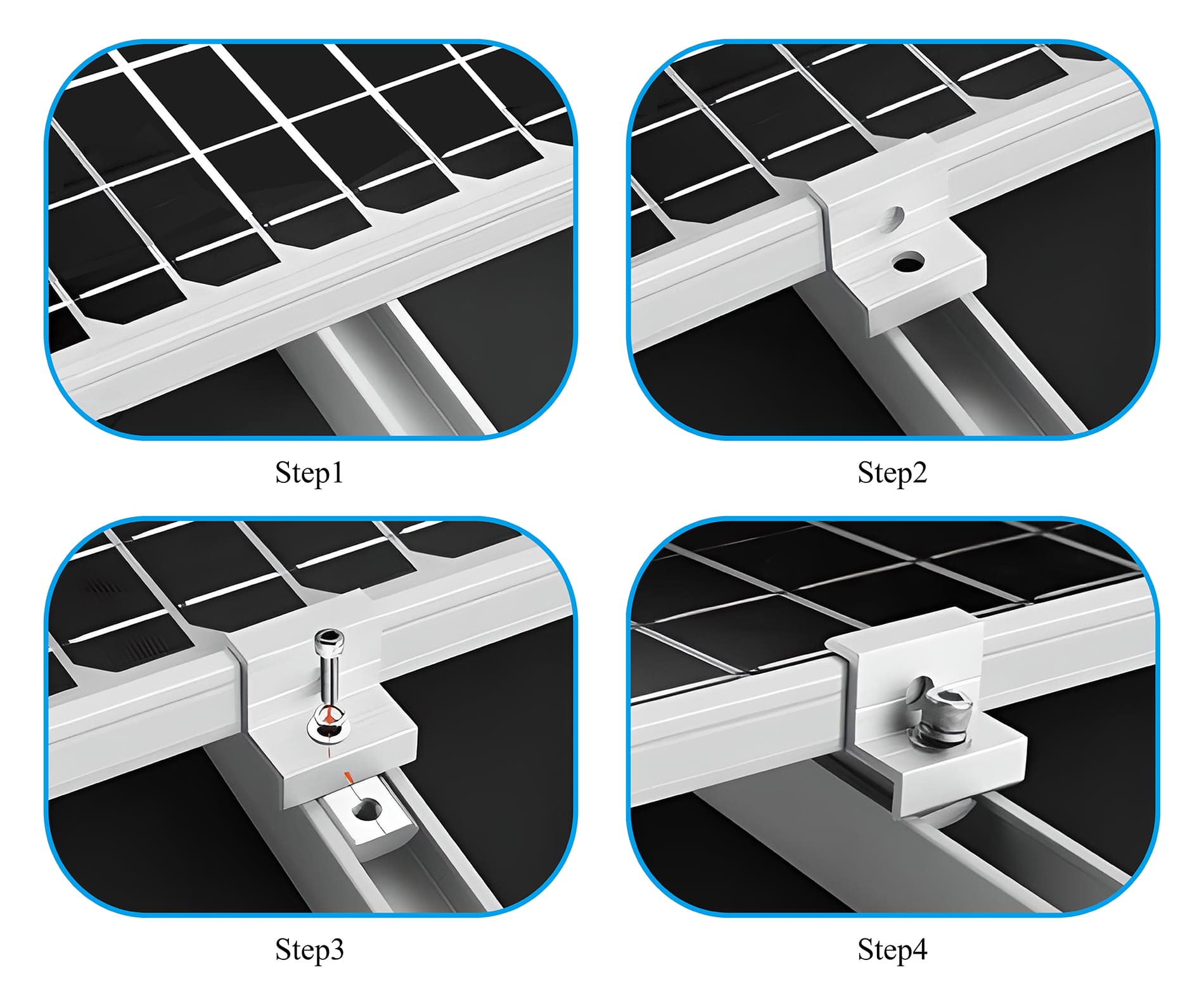

1️⃣ Pilih Saiz yang Tepat: Periksa ketebalan bingkai panel anda (30 mm atau 35 mm) dan tukar sisipan lekapan agar sepadan.

2️⃣ Get It in Place: Put the end fixture on the panel's edge and line it up with the mounting rail.

3️⃣ Tighten It Down: Put the bolts into the rail nuts and tighten them to the right amount using a torque wrench.

4️⃣ Give It a Look: Make sure the fixture is flat against the panel frame and that all the fixtures are tightened evenly.

Easy Installation Aluminum Solar Panel End Clamp

Solar panel hold down clamps

☆ Pengapit hujung yang berbeza boleh disediakan berdasarkan apa yang pelanggan inginkan.

☆ Really Tough Stuff – Made with the best AL6005-T5, so it’s guaranteed for 10 years and should last for 25.

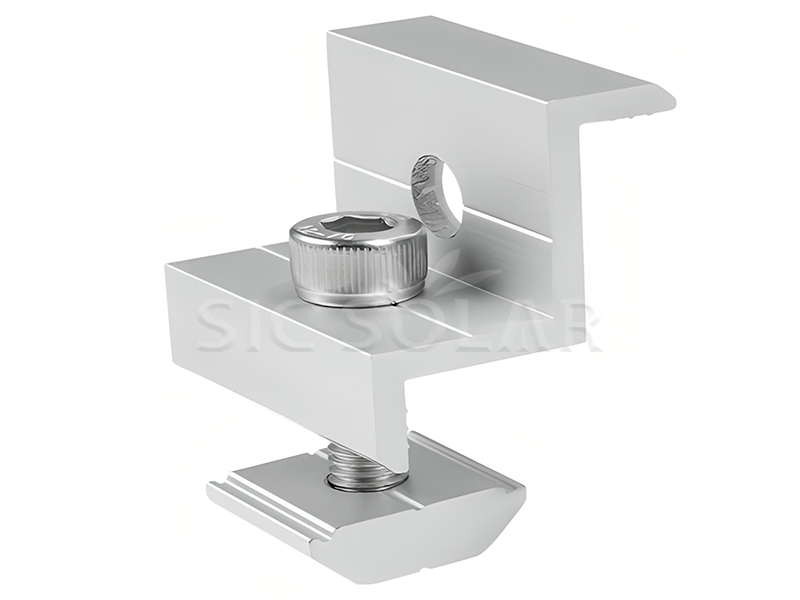

☆ Smart nut design – you can slide the Tilt-in-module into any spot on the rail.

Solar rail installation

Related certificate

☆ Aluminum quality certificate -- AL6005-T5 composition list.

S1. Bolehkah bolt juga dibuat hitam?

Yes.

Q2. Can the clamps be customized ?

Yes.
